Hardware Installation Guide

These step by step instructions will guide you through everything that needs to happen with your hardware between the time you first open the box to the time you ring your first sale.

Now that your hardware has arrived, it is time to set up your POS.

Before beginning the installation, please make sure that you have:

  • An active internet connection & modem with one open port (not provided by Revel).
  • At least 1 power outlet and 1 data port where you plan to install each POS terminal.

You may also want:

  • Extra surge protectors and extension cords
  • Custom-length Ethernet cables
  • Cable ties to keep your setup tidy

We're here to help!

If you need assistance setting up your system, Revel offers dedicated Client Success Manager (CSM) services. Our CSMs are fully trained Revel Point of Sale experts, available for on-site visits. They assist and train our clients to help them take full advantage of their Revel Point of Sale. To request a CSM appointment, contact your sales representative, or call 415-744-1433.

To find out more information about CSM services, visit revelsystems.com/client-success-manager/

This guide will walk you through the setup of your POS terminal. When installing more than one terminal, repeat steps two through nine for each additional terminal.

Hardware components of your Point of Sale Terminal:

POS Components
✓

Step 1
Connect to the Internet

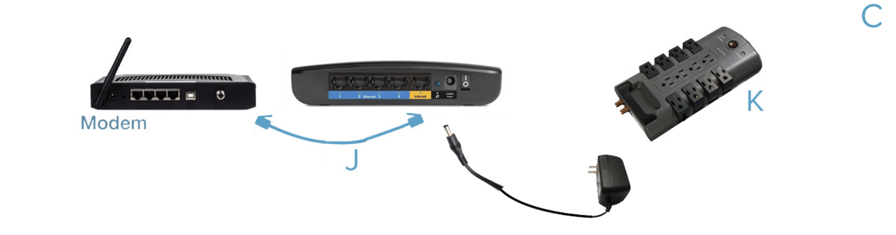

Use an Ethernet cable (J) to connect the router (C) to the modem supplying your Internet, then connect the router to power (C1), and place in the desired location.

2.1 Modem Setup
✓

Step 2
Configure the Stand

Install the stand (G) in the desired location and mount the iPad.
Note: The stand either mounts onto a base plate, or directly into the counter. When mounting the stand into the counter (recommended), holes must be drilled before beginning step 2.

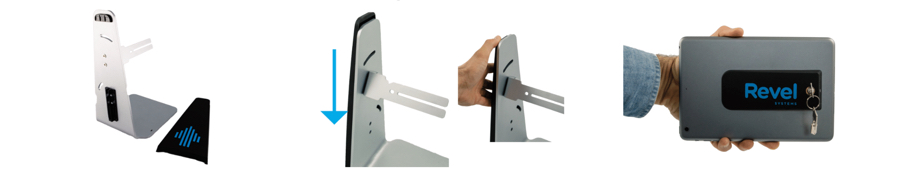

2.1: Place the stand upright.

2.2: Attach the plastic cover to the vertical wall of the stand, sliding it down the wall to secure, as shown in the image below

2.3: (Optional) Using the circular key, unlock the pin on the pronged horizontal arm.

Stand Setup 2.1

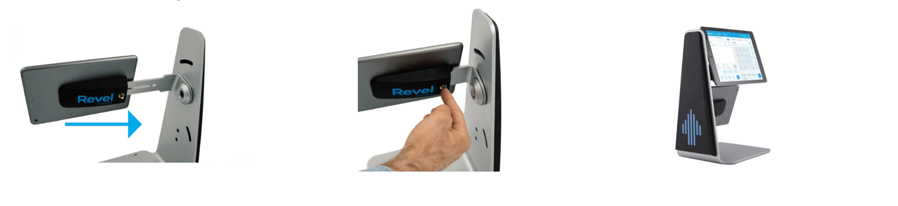

2.4: Slide the mounted iPad into the pronged, horizontal arm so that the screen faces towards the user, away from the arm’s mounting.

2.5: Push the pin back in to secure the iPad in place.

2.6: (Optional) Repeat steps 3-5 on the other pronged arm for the Customer Display Unit, making sure the CDU faces the customer.

Stand Setup 2.2
✓

Step 3
Configure Your Router

Place a switch (L) by where you will install the terminal or by the stand; connect to any of the blue ports on the router (C) using an Ethernet cable (J) and connect the switch to power.
Note: The router can be used as a switch for one terminal. If no switch is being used, continue to step 4.

Stand Setup 2.1
✓

Step 4
Visit Revel University

Connect the iPad to power by connecting the lightning cable (A1) to the port on the iPad (A) and plugging the cable into the surge protector or an electrical outlet. If you purchased the Revel Ethernet connect adapter (N), connect the lightning cable to the adapter (N), which then connects to the port on the iPad (A). Connect an Ethernet cable (J) to the USB to Ethernet Converter. Connect the other end of the cable to the switch (L). Connect the iPad power cable to the surge protector.

Stand Setup 2.1

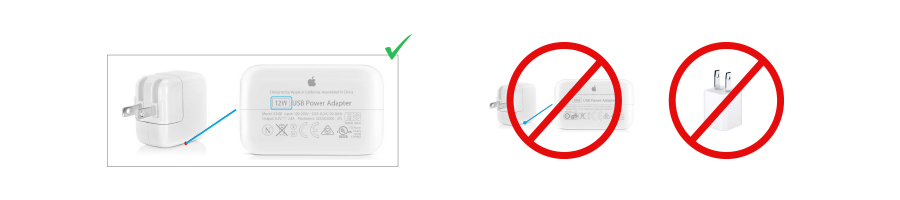

Note: The Revel Ethernet connect will only charge the iPad with the 12W charger or 29W charger for iPad Pro’s (5W and 10W will not be sufficient).

Stand Setup 2.1
✓

Step 5
Set Up Your Access Point

Connect and place access point.
Note: Exact model of the access point may vary. Only the outdoor access point comes with antennae. These antennae need to be attached to the access point. If you are using the Meraki access point, please also see the Meraki Install Guide.

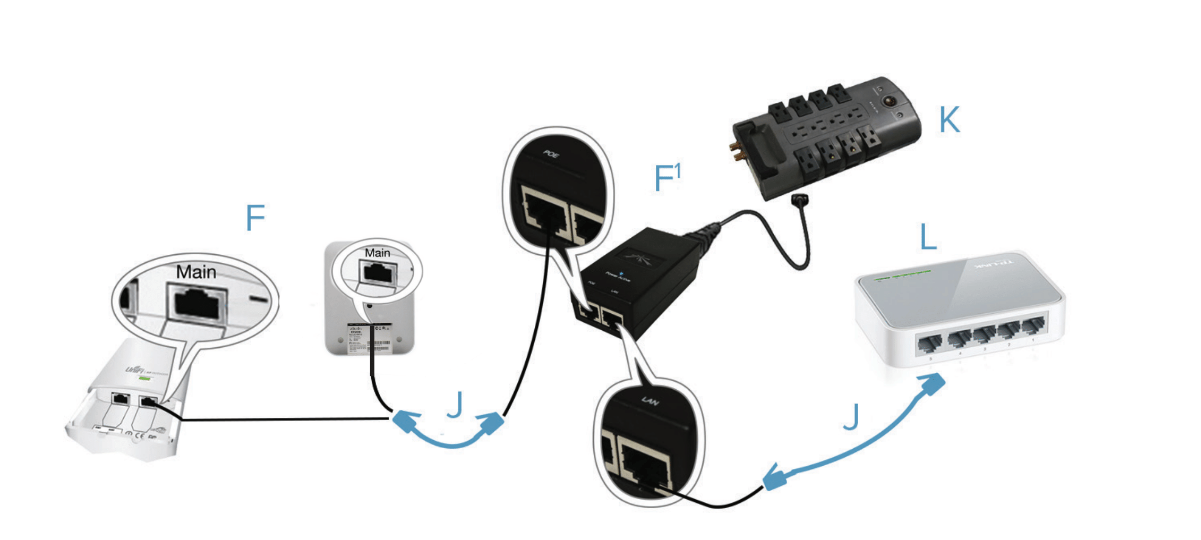

5.1: Connect an Ethernet cable (J) to the LAN port in the power supply (F1) and to the switch or router (L).

5.2: Connect the access point power supply (F1) to power.

5.3: Remove the back cover of the access point and use a second Ethernet cable to connect the main port in the access point (F) to the POE port in the power supply (F1).

5.4: Place or mount the access point in the desired location. All iPads must be within 20 feet of an access point. Maintain a clear line of sight between the iPad(s) and access point(s). Mounting plates and velcro strips are included as suggested mounting tools; other methods (tape, ties, etc.) are also effective depending on your placement and aesthetic goals. If your router is more than 20 feet away from where your POS will be set up, please ensure that you have an Ethernet cable that runs from your router to where your POS will be stationed. For more information please see https://support.revelsystems.com/hc/en-us/articles/204170209-Access-Point-Placement

Stand Setup 2.1
✓

Step 6
Set Up Your Credit Card Swipe

Connect and set up the credit card swipe.
IDTech do not attach to the new L stand. There is a separate holder for the IDTech swipes.

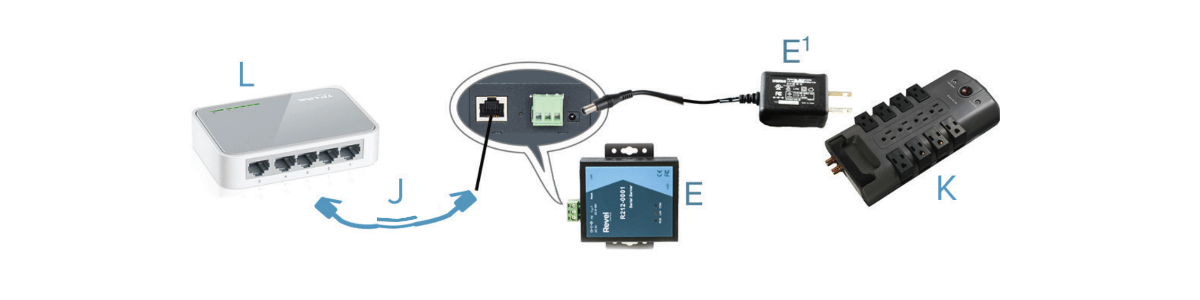

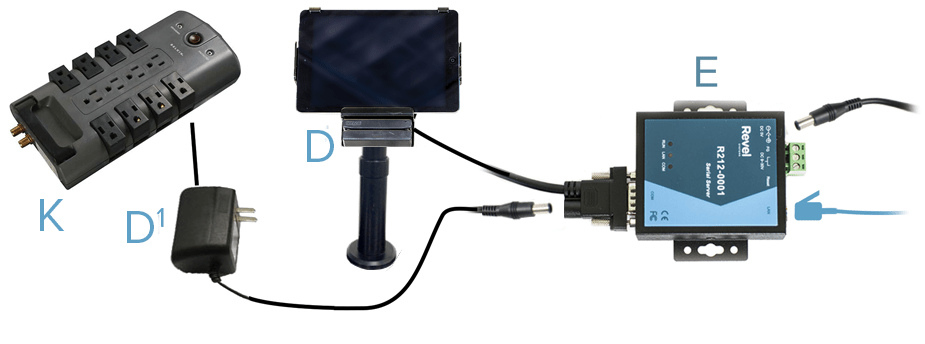

6.1a: Connect the Revel R212 (E) to power using the power supply (E1).
Note: traditionally Revel R212 boxes are placed under the counter or otherwise out of sight.

6.2a: Connect the Revel R212 (E) to the switch or router using an Ethernet cable (J).

Stand Setup 2.1

6.3a: Connect the credit card swipe (D) to the R212 (E).

6.4a: Then connect the credit card swipe to power. The power supply (D1) connects to the serial cable (shown below), not to the credit card swipe itself.

Stand Setup 2.1

For Ingencio Card Swipes

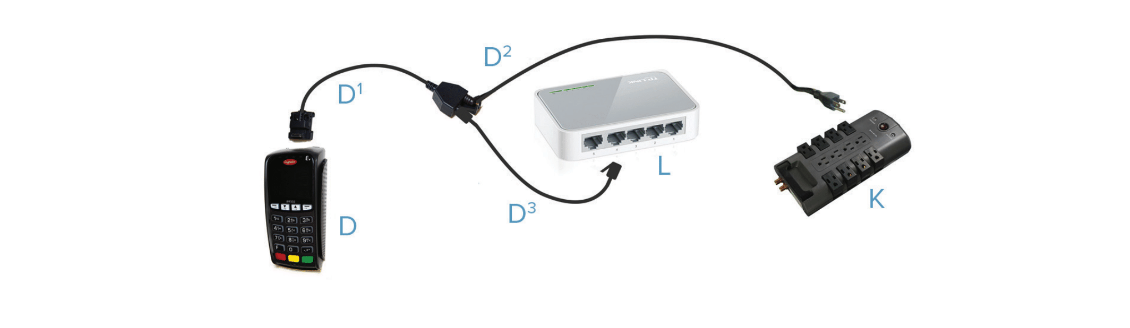

6.1b: Attach the Ethernet and power cables to the corresponding ports on the splitter cable (D1)

6.2b: Connect the power supply end of the splitter cable (D2) into the surge protector.

6.3b: Using the Ethernet cable (D3) connect the Ethernet end of the splitter cable to the switch or router (L).

6.4b: Connect the main adapter end of the cable (D1) to the Ingencio card swipe (D).

Stand Setup 2.1
✓

Step 7
Set Up Your Access Point

Set up the printer.

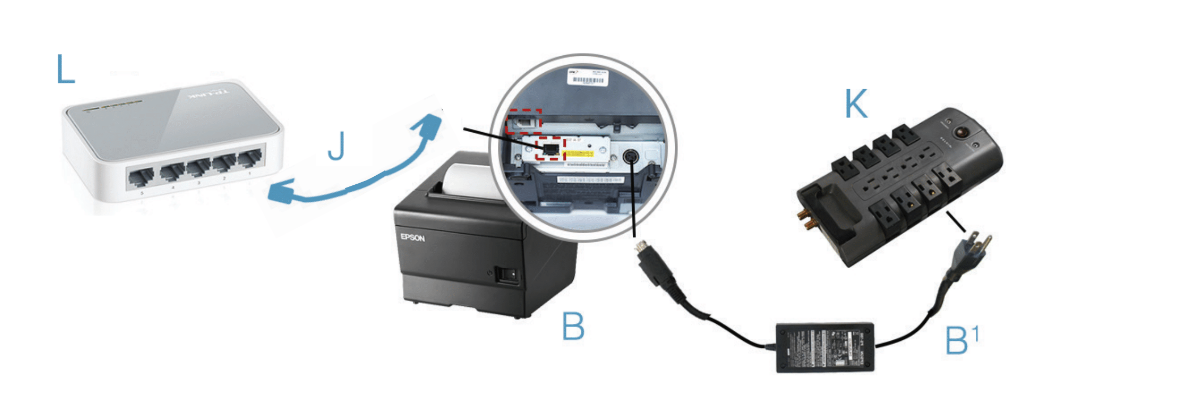

7.1: Place the printer (B) in its final location.

7.2: Connect the power supply (B1) to the printer and power.

7.3: Use an Ethernet cable (J) to connect the printer to the router or switch (L).

Stand Setup 2.1
✓

Step 8
Set Up Cash Drawer

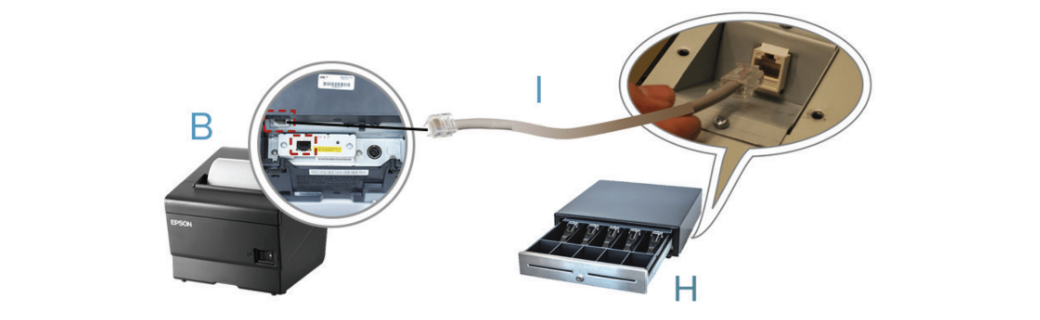

Connect the cash drawer (H) to the printer (B) using the cash drawer cable (I). You will be able to distinguish the cash drawer model by the manufacturer’s label on the box. APG cash drawer cables are distinguished from Ethernet cables by having non-identical ends – one is smaller than the other. MS cash drawer cables ends are labeled for their appropriate end points, printer and cash drawer.

8.1: Plug the larger end of the cable (I) into the cash drawer (H).

8.2: Plug the smaller end of the cable (I) into the printer (B).

Stand Setup 2.1
✓

Step 9
(Optional, if you have purchased a scanner)

Connect the scanner.

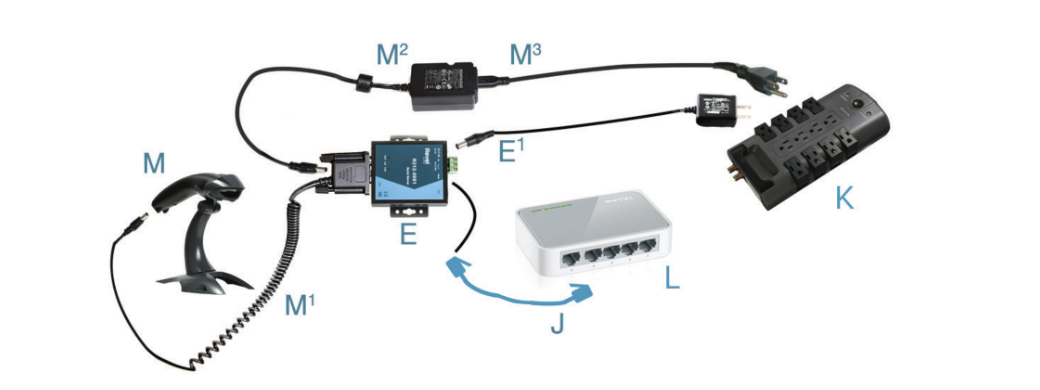

9.1: Connect the barcode scanner (M) to its serial cable (M1), and plug the other end of the cable into the serial port of the scanner’s R212 unit (E).

9.2: Connect the Ethernet cable (J) to the switch (L).

9.3: Connect the R212 unit to power using the R212 power adapter (E1).

9.4: Connect the scanner power adapter (M2) to the port located just past the coiled section of the scanner serial cable (M1). Once done, connect the cable (M3) to an electrical outlet or surge protector.

9.5: Screw the neck of the scanner stand into its base and place the scanner inside the stand.

Stand Setup 2.1

If assembling multiple terminals, repeat steps 2-9 for each additional terminal.

Once your hardware is installed and you have completed your onboarding, you are ready to start taking transactions. If you have any questions, please call 415-744-1433 to speak with an agent.
